Product Description

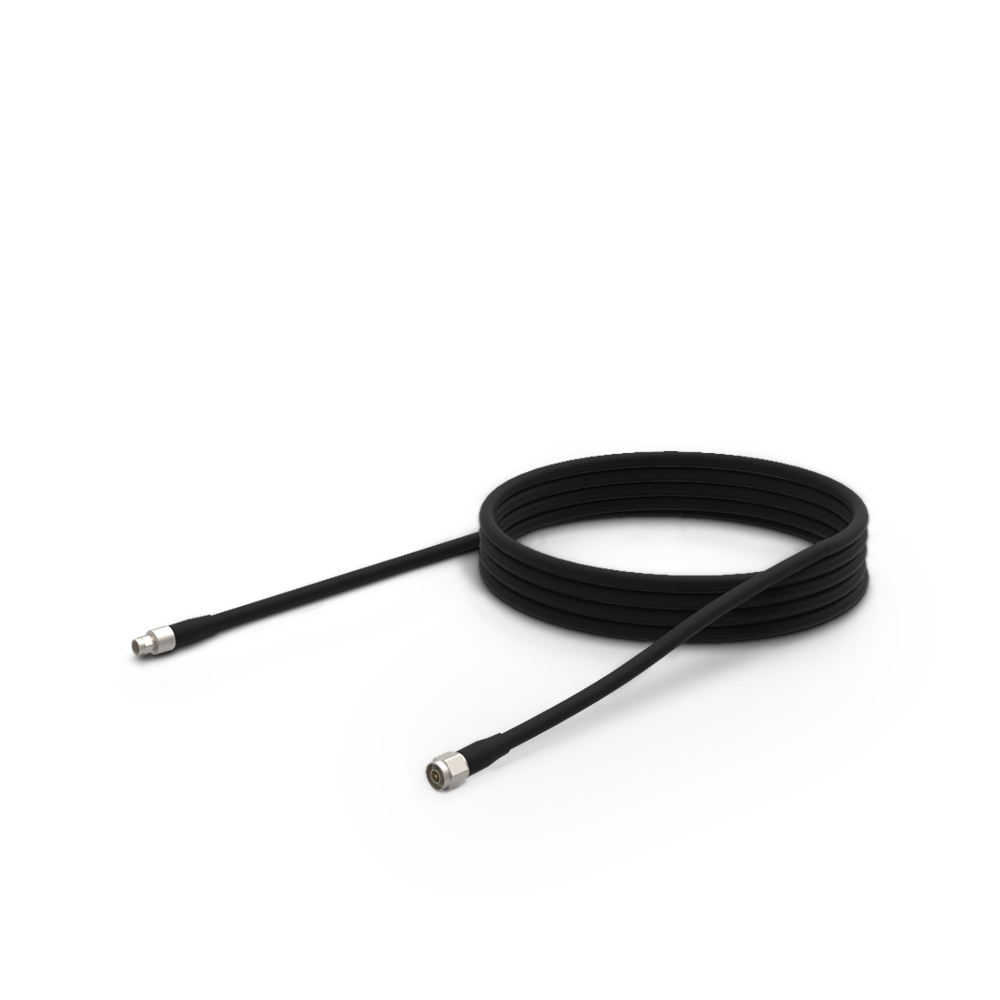

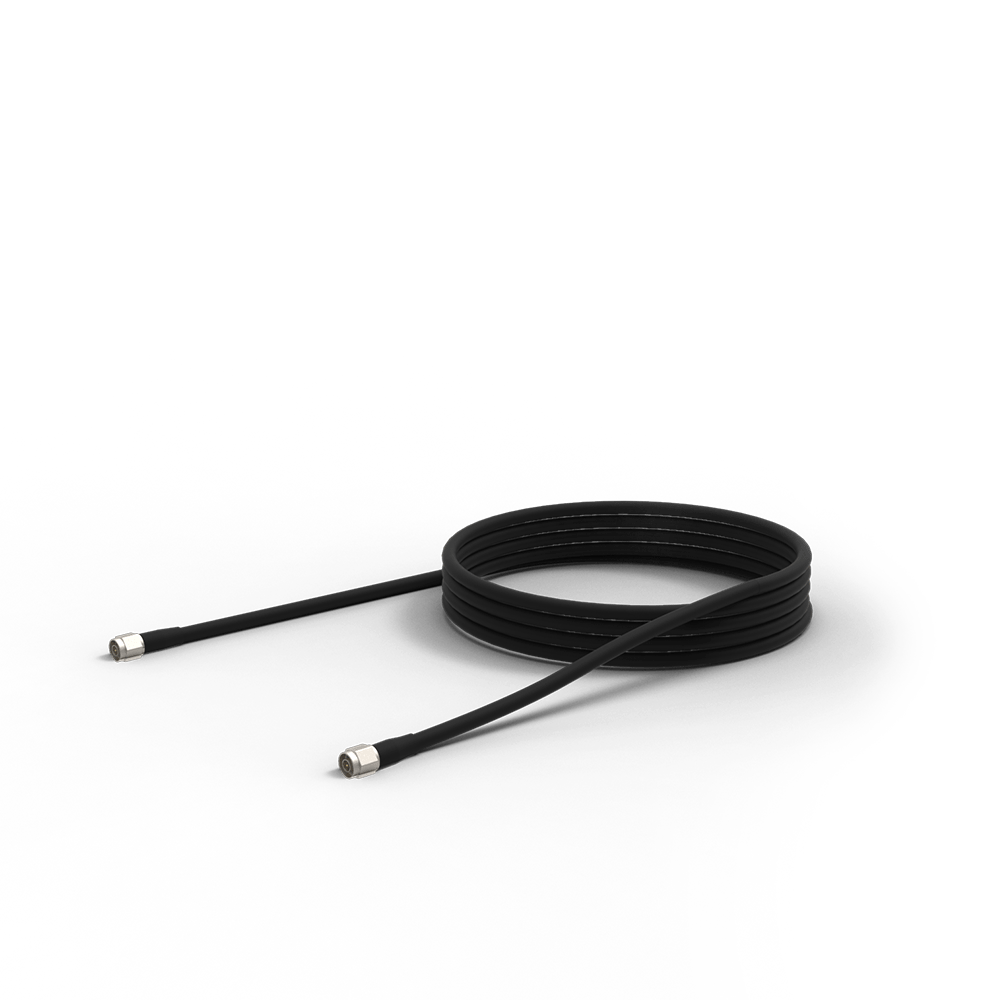

RAK9732 N-Type Male to N-Type Male
This Pulsar cable is a high-grade cable, suitable for outdoor applications with WisGate Edge Prime, Max, and Pro (RAK7240, RAK7249, and RAK7289). This cable allows you to connect and better position the 12 dBi Directional Antenna for optimal coverage.
Power Loss
| Frequency | 1.5-m / 4.9-f Length | 3-m / 9.8-f Length | 5-m / 16.40-f Length | 10-m / 32.80-f Length |
| 433 – 435 MHz | ≤ 0.30 dB | 0.45dB | 0.65dB | 1.15dB |
| 470 – 510 MHz | ≤ 0.35 dB | 0.5dB | 0.7dB | 1.20dB |
| 863 – 870 MHz | ≤ 0.40 dB | 0.63dB | 0.85dB | 1.65dB |
| 902 – 930 MHz | ≤ 0.45 dB | 0.65dB | 0.9dB | 1.70dB |
| 2.4 GHz | ≤ 0.70 dB | 0.95dB | 1.2dB | 2.70dB |
| 4 GHz | ≤ 0.90 dB | 1.4dB | 2.15dB | 4.05dB |
Product Features
- RAK9732
- Cable length variants: 1.5m, 3 m, 5 m, 10 m
- Connector: N-type male to N-type male
- Frequency Range: 0~6 GHz
- Cable type: LMR400
- VSWR: ≤ 1.5
